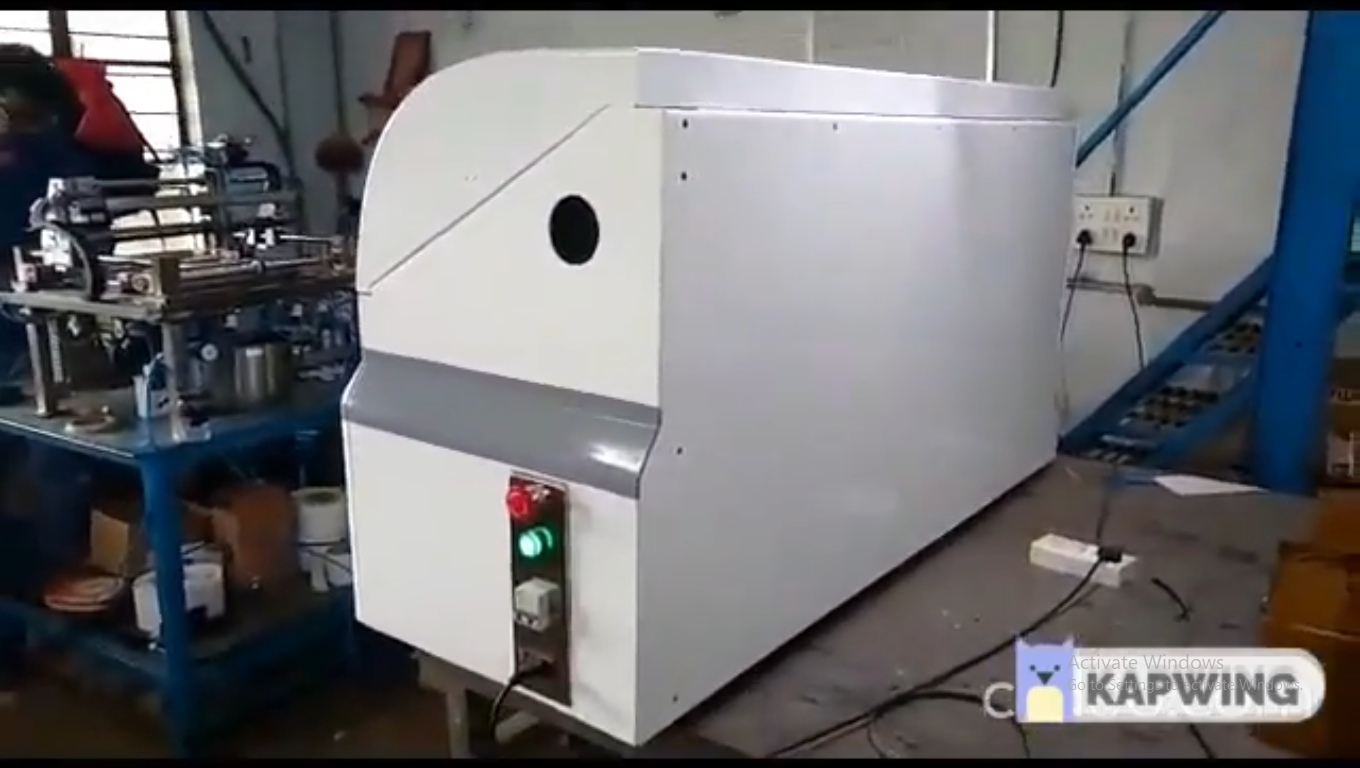

SLIDE AUTOMATION SMALL

Description

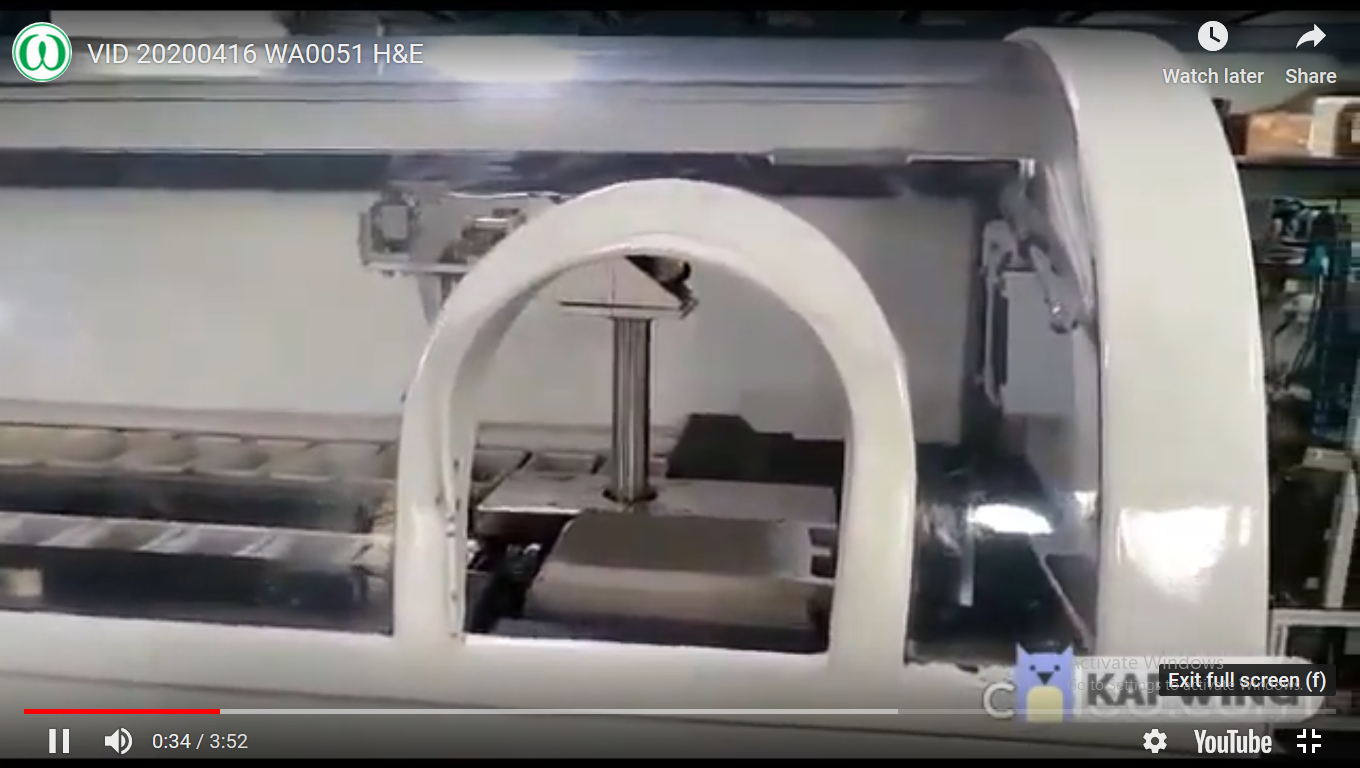

This machine is for handling automation of tissue slides through different reagents (with different incubation time) as per sequence entered in protocol. It can handle 72 slides in two & half hours for 18 reagent protocol. It has a continuous loading option for loading and processing slides before previous batch is completed.

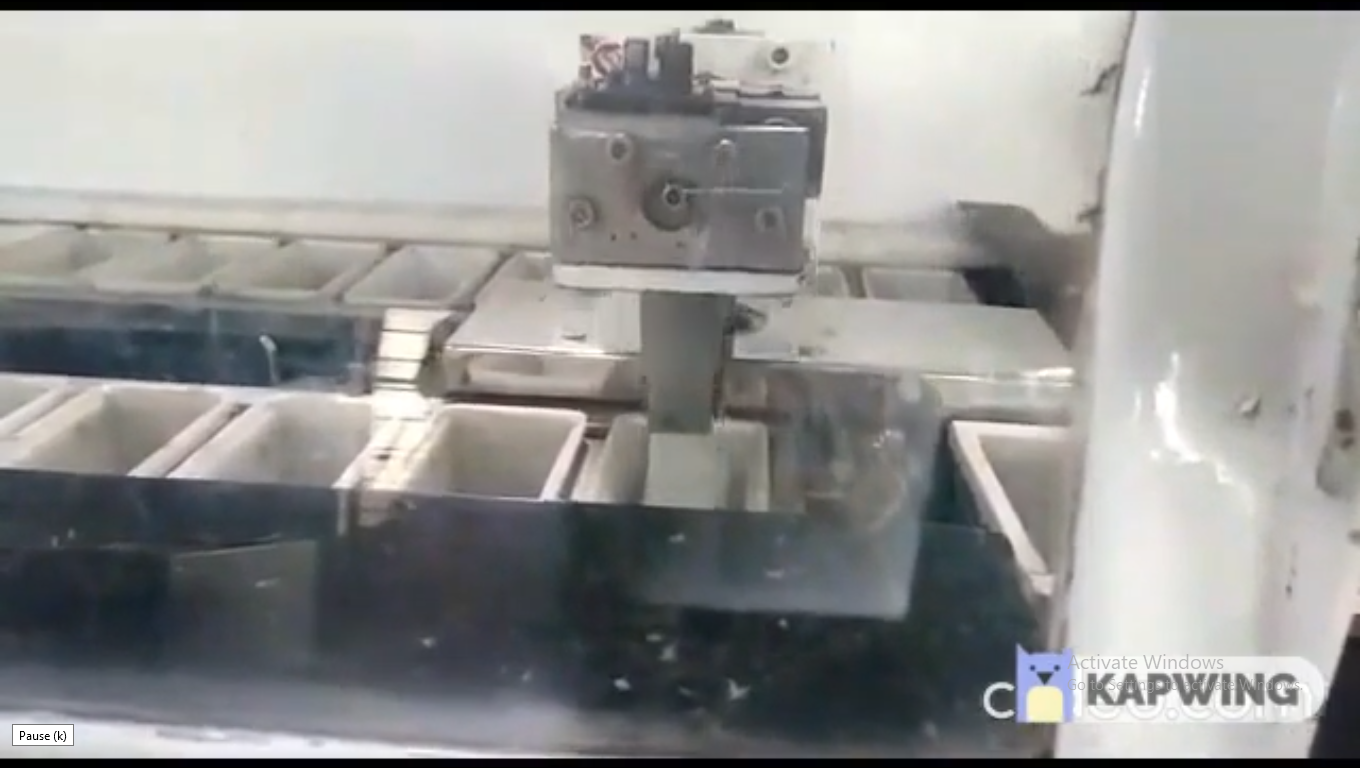

Each rack containing 5 slides goes through different reagent containers before being placed in unloading area.

Washing liquid in wash stations are automatically circulating during wash.

Separate piping manifold takes care of hazardous and non-hazardous liquids. There are sensors in liquid storing carboys to update availability of liquid or space to the operating system.

Window based operating system with touch screen interface. The application software has four modules, namely Run, Maintenance, Calibration and Settings, Results. The application software can maintain the targeted incubation time within plus minus 15 sec.

Specifications

Foot Print : 1200 mm by 500 mm
Structure : Powder coated fabricated structure with adjustable leveling legs.
Capacity : Can process 72 slides in one and half hours with 18 reagents.
Robotic Arm accuracy : +/- 0.15 mm.
Air Heating Temp : Can be set anywhere between room temp to 900 C with an accuracy of +/- 30C, with automatic lid closing and opening.
Reagent Positions : 18 nos
Incubation Time : Incubation time can be set for individual reagents, from 0 sec to 30 mins. Zero sec means only dipping in reagent and taking out.
Liquid Handling : Washing liquid in wash stations are automatically circulating during wash.
Weight : 450 kg.
Software : Window based operating system with touch screen interface. The application software has four modules, namely Run, Maintenance, Calibration and Settings, Results. The application software can maintain the targeted incubation time within plus minus 15 sec.
